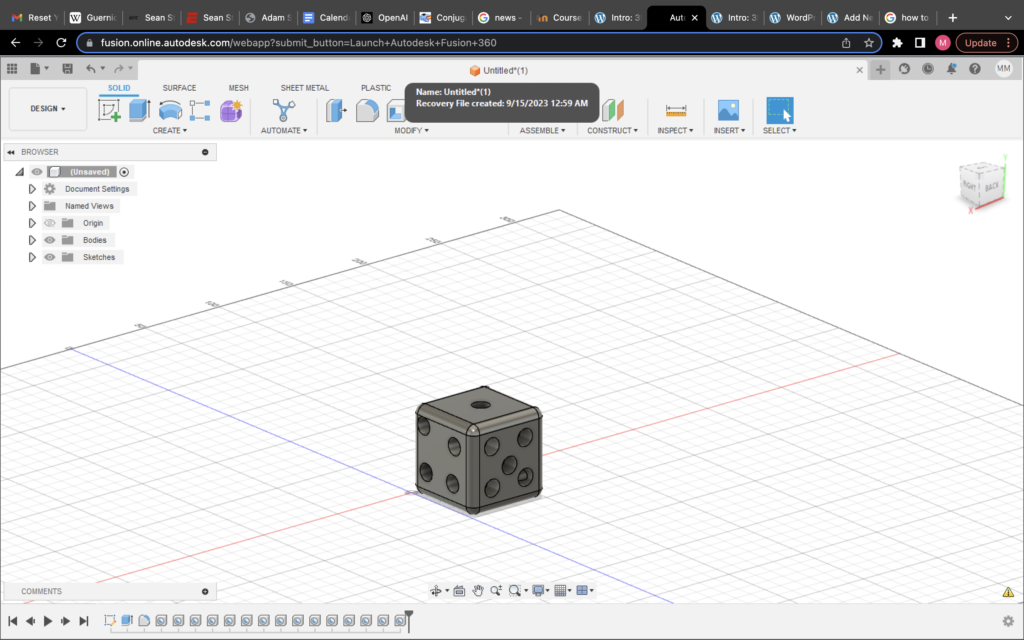

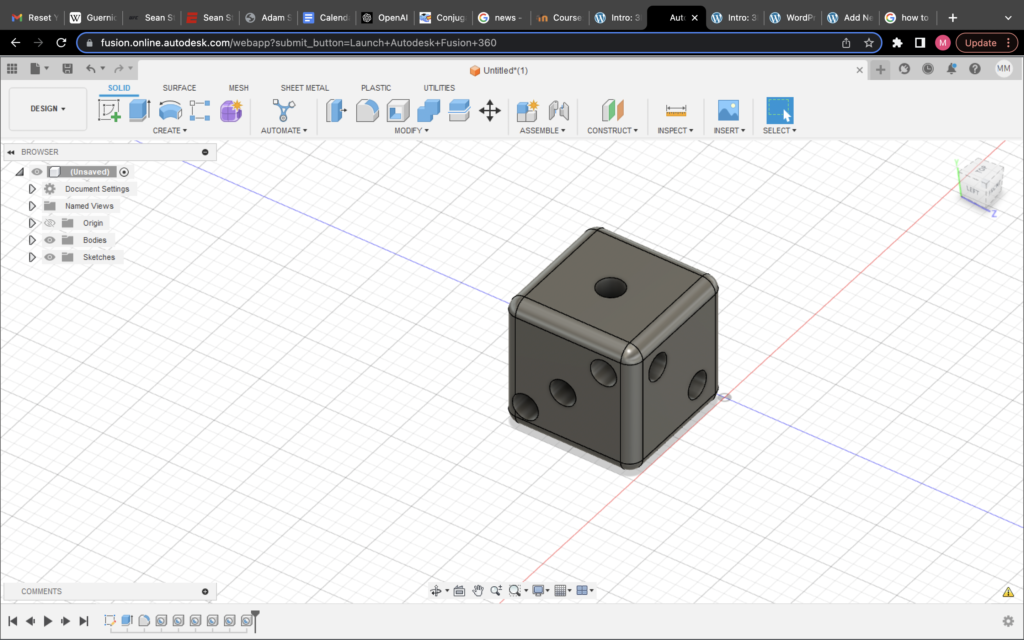

This was my first time using Fusion 360, and because of that, I had a lot of difficulties initially using Fusion 360. I found that there were a lot of different three-dimensional shapes that I was able to create with the program by simply clicking my mouse, this caused some initial struggles because I was having difficulty finding the fillet option given the sheer number of shape options that are present in Fusion 360. A compromise I had to make when constructing my dye occurred when I was using the fillet option on the edges. I felt that the smallest fillet option was too severe but since there was no smaller and less severe option I had to compromise and go with the smallest fillet option that was available. Fusion 360 has a lot of potential to benefit humanistic research, for example, it gives researchers the ability to recreate archeological objects in a digital landscape making these objects more accessible for examination.
